The Yaesu FT5DR is a high-performance, full-featured C4FM handheld transceiver designed for superior operability and packed with new, sophisticated functions for the modern amateur radio enthusiast.
Despite its compact size (W2.44” x D1.34” x H3.94”), the FT5DR delivers a reliable 5W RF power output and a powerful 1W audio output that has been meticulously tuned for exceptional clarity. Enjoy true Real Dual Band Operations (V+V, U+U, V+U, U+V) with two independent receivers, each featuring large, individual LED indicators that instantly display the active band and communication mode (C4FM or Analog). The innovative FT5DR also supports simultaneous C4FM digital (C4FM/C4FM standby) for advanced digital communication.
Built for durability, the FT5DR features rubber corner protection for rugged and shock-resistant construction, along with an IPX7 waterproof rating, ensuring reliable operation even in challenging environments. The comfortable, full-flat back body provides an excellent and secure grip for the radio operator.

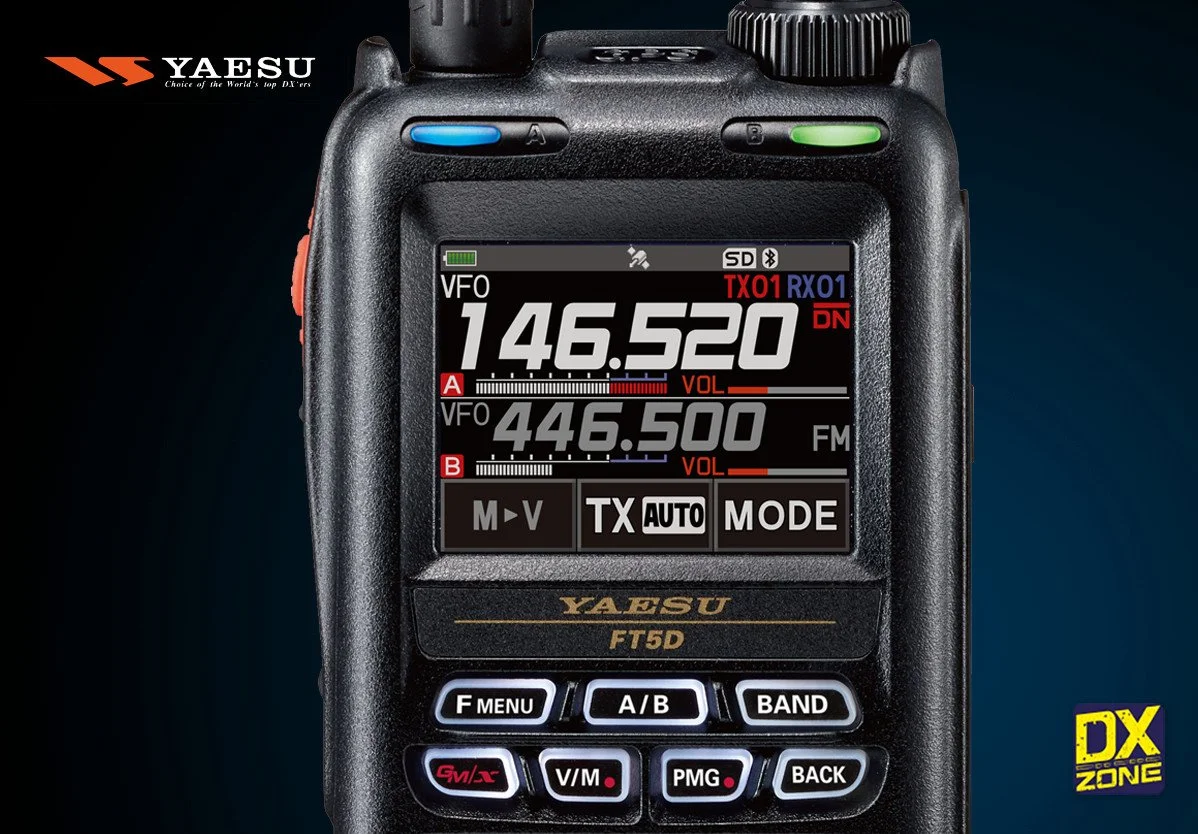

A high-resolution display clearly presents the operating band frequency, with selectable color options (white, blue, or red) for enhanced visibility. Intuitive operation is provided by three (3) touch panel keys and seven (7) operation keys conveniently located below the display.
The new TOUCH & GO operation offers unparalleled convenience for quickly initiating communication on frequently used frequencies. Simply press and hold the “PMG” key to register the current display frequency into the Primary Memory Group. Subsequently, pressing the “PMG” key displays the activity of these registered frequencies as bars on a graph, allowing for instant recall by simply touching the desired bar.
The integrated Band Scope function provides real-time monitoring of up to 79 channels centered around the current VFO frequency. The center frequency can be easily adjusted using the dial knob or by directly touching and moving the frequency bar of a displayed channel.
The FT5DR seamlessly integrates popular C4FM digital communication features, including Automatic Mode Select (AMS), Digital Group ID (DG-ID) operation, and the helpful Smart Navigation function.
Expanding its versatility, the FT5DR supports the WiRES-X Portable Digital Node Function. Easily set up a portable digital node with the FT5DR, an internet-connected laptop PC, and the optional SCU-39 cable kit.
Further enhancing its capabilities, the FT5DR boasts advanced features such as wireless hands-free operation via the optional Bluetooth® headset (SSM-BT10), a convenient VOX function, intelligent Memory Auto Grouping (MAG), a useful VFO Band Skip Function, and wide-range RX coverage (0.5MHz–999.99MHz on A Band, 108MHz–580MHz on B Band). A built-in high-sensitivity 66-channel GPS receiver provides accurate location information, and the integrated 1200/9600bps APRS Data modem enables APRS functionality. The standard 2,200mAh High-Capacity Li-ion Battery Pack (SBR-14LI) ensures extended operating time, and the Voice Recording Function allows you to capture important transmissions. Enjoy simultaneous AM/FM broadcast reception while monitoring two frequency channels, and utilize the Micro SD Card Slot for expanded storage and functionality.
The included Quick Release Holster (SHB-26) provides a single-touch attachment and detachment system for convenient carrying on your belt.
Key Features:
C4FM/FM 144/430MHz Dual Band Digital Transceiver
Real Dual Band Operation (V+V, U+U, V+U, U+V)
Simultaneous C4FM Digital (C4FM/C4FM Standby)
Reliable 5W RF Power Output
Loud 1W Tuned Audio Output
Compact & Rugged Design with Rubber Corner Protection
IPX7 Waterproof Rating
High-Resolution Display with Selectable Frequency Color
Intuitive Operation with 3 Touch Panel Keys & 7 Operation Keys
New TOUCH & GO Operation for Quick Frequency Recall
Band Scope Function (Up to 79 Channels)
Automatic Mode Select (AMS)
Digital Group ID (DG-ID) Operation
Smart Navigation Function
WiRES-X Portable Digital Node Function Support
Wireless Hands-Free Operation (Optional Bluetooth® Headset)
VOX Function
Memory Auto Grouping (MAG)
VFO Band Skip Function
Wide-Range RX Coverage (0.5-999.99MHz A Band, 108-580MHz B Band)**
Built-in High-Sensitivity 66 Channel GPS Receiver
1200/9600bps APRS Data Modem
2,200mAh High-Capacity Li-ion Battery Pack (SBR-14LI) Standard
Voice Recording Function
Simultaneous AM/FM Broadcast Reception
Micro SD Card Slot
